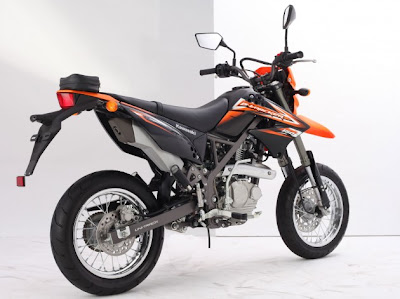

Kawasaki D-Tracker 150 is designed for adventure lovers in the design of the power, acceleration, balance, a comfortable riding position, the light weight of the vehicle and an aerodynamic body, Explore two worlds at once with Kawasaki D-Tracker 150.
Specification Kawasaki D-Tracker 150
Frame :
Brakes Front Hidrolic, single-Disc
Rear Brake Hidrolic, single-Disc
Front Tire 100/80-14
Rear tire 120/80-14
Length x Width x Height 1900 x 770 x 1060 mm
Axis Wheels distance of 2010 mm
Distance to the Land of 255 mm
Weight 229 kg / 109 kg
Engine :
Type 4-Step, SOHC, 2 valves
Maximum Power 11.7 PS / 8000 rpm
Maximum torque 12 Nm / 6500 rpm
Keihin carburetor NCV24
Bore x Stroke 58.0 x 54.4 mm
Cylinder Volume 1 fruit & 144cc
Compression Ratio 9,5:1
Drivetrain :
Number of Transmission 5 speed return
Primary Reduction Ratio 2.929 (41/14)
Teeth Into Ratio-1 2.917 (35/12)
Ratio Teeth 2nd 2.000 (32/16)
Dental Ratio 3rd 1.182 (26/22)
Dental Ratio 4th 1.182 (26/22)
Dental Ratio 5th 1.000 (24/24)
Overall Drive Ratio 8.434 in Top Gear
Clutch Wet Multi - Disc
Number of Transmission 5 speed return
Primary Reduction Ratio 2.929 (41/14)
Teeth Into Ratio-1 2.917 (35/12)
Ratio Teeth 2nd 2.000 (32/16)
Dental Ratio 3rd 1.182 (26/22)
Dental Ratio 4th 1.182 (26/22)
Dental Ratio 5th 1.000 (24/24)
Overall Drive Ratio 8.434 in Top Gear
Clutch Wet Multi - Disc
