2015 Yamaha FZ-09 Features, Specs and Price

Posted by All About Motorcycles


2015 Yamaha FZ-09 Price
2015 Yamaha FZ-09 Price  - Yamaha again presents his latest street bike is 2015 Yamaha FZ-09 with its aggressive design and more fierce. New Yamaha FZ-09 engine equipped with a 847 cc, liquid-cooled DOHC 4-stroke, 12 valves with injection technology is juxtaposed with a 6 speed transmission.

All New Yamaha FZ-09 2015  uses an aluminum chassis which is claimed to be lighter and easier to control. 2015 Yamaha FZ-09 will go on sale in October 2014 and released at a price of $ 8,190, comes with three color options, namely Matte Gray, Matte Silver,  Cadmium Yellow.

2015 Yamaha FZ-09 Features
  • 847cc liquid-cooled, in-line 3-cylinder, DOHC, 12-valve engine with fuel injection. This FZ-09™ engine combines advanced high tech components including YCC-T® and Yamaha D-Mode, with a crossplane concept crankshaft to deliver an exciting, torquey and quick-revving engine character.
  • “Crossplane Crankshaft Concept” provides linear torque development in response to the rider’s throttle input. Among the advantages of the in-line 3-cylinder engine are: (1) linear torque development, (2) even firing intervals that provide smooth torque characteristics and a good feeling of power in the low to mid rpm range, (3) a light, slim and compact design, and (4) performance that combines the characteristics of both 2-cylinder and 4-cylinder engines.
  • A 6-speed transmission has been adopted to match the engine. The transmission has optimized gear ratios that help to deliver engine torque efficiently. The result is a transmission that helps bring out more of the low- to mid-speed torque and excellent response characteristics.
  • The ride-by-wire Yamaha Chip Controlled Throttle (YCC-T) system senses the slightest throttle input by the rider, relays the data to the ECU, which instantaneously calculates the ideal throttle valve opening based on engine rpm and throttle opening, and then sends commands to a servo-motor actuator that moves the throttle valve which actively controls the intake airflow volume. This is a technology contributing to the rider’s feeling of torque and controllability from the 3-cylinder engine.
  • The FZ-09 is equipped with Yamaha D-MODE (or “Drive Mode”) variable throttle control system to allow the rider to choose the optimum engine character for their riding situation. The rider can choose at will from three throttle valve control maps (Standard Mode, “A” Mode, and “B” Mode) for different performance characteristics. Operation is performed by a button on the handlebars. STD Mode is set to accommodate a wide range of riding conditions. In this mode the rider can enjoy the 3-cylinder engine’s linear torque feeling from low speeds all the way up to high speeds. A-Mode lets the rider enjoy sharper throttle response in the low-to mid-rpm range than the STD Mode. B-Mode lets the rider enjoy milder throttle response than the STD Mode for more relaxed power characteristics.
Engine:
  • 847cc liquid-cooled 4-stroke, in-line 3-cylinder, DOHC, 4-valve engine with downdraft intake and fuel injection. With a 78 x 59.1mm bore x stroke and 11.5:1 compression ratio, it produces an exciting, torquey and quick-revving engine character.
  • Some of the advantages of the 3-cylinder engine in the FZ-09 include linear torque development due to the even firing intervals that provide smooth torque characteristics and a good feeling of power up into the low to mid rpm range, as well as combining desirable characteristics of both 2-cylinder and 4-cylinder engines. In addition, the engine design can be light, slim and compact.
  • To reduce vibration and help give a smoother ride, the engine has a primary coupled-force balancer that revolves in the opposite direction and at the same speed as the crankshaft.
  • The connecting rods are made using the fracture split (FS) method to ensure a high degree of circular precision in the rod’s big-end ring for a precise fit and smoother crank revolution. The fracture split (FS) method is where the big-end ring of a forged connecting rod is split in two by applying a sharp impact. This creates a perfectly matching split surface that naturally produces a much more precise mating surface when they are bolted together again around the crankshaft. Yamaha Byson FI Review
  • To provide both exciting and quick revving torque characteristics and a unique intake sound, the 3-cylinder intake funnels have been designed with uneven lengths. The first cylinder funnel is 102.8mm, the second 82.8mm and the third is 122.8mm. This combines with the effects of the YCC-T system to contribute to an excellent torquey engine character.
  • The FZ-09 transmission takes full advantage of the low-to-mid-range torque and excellent response characteristics of this in-line, 3-cylinder fuel-injected engine. The 6-speed transmission has been designed to be very compact, enhancing the overall narrow 3-cylinder design.
Chassis/Suspension:
  • The wheelbase, seat height, fuel tank width, rake and other dimensions are all set to work with the qualities of the compact 3-cylinder engine to achieve a sporty, light and neutral handling character, an upright riding position and a narrow feeling chassis at the seat/tank junction.
  • For excellent damping characteristics, the front suspension is an inverted fork with 41mm inner tubes with 5.4 inches of travel. The front suspension features adjustment for spring preload and rebound damping.
  • The rear suspension features a linked-type Monocross® shock. The shock is positioned below the seat and features an almost horizontal alignment. This unique positioning contributes to mass centralization and a slimmer body design. The rear suspension is also adjustable for spring preload and rebound damping. These adjustments allow for different riding conditions and rider preferences. Yamaha Nmax 150 Review
  • 10-spoke lightweight cast aluminum wheels are used, fitted with a 120/70ZR17 front tire and 180/55ZR17 rear tire. The tires have been designed with an optimally-tuned internal structure that contributes to good handling stability.
  • Front brakes consist of two floating 298mm discs with 4-pot opposed piston calipers. The calipers are radial mounted.
Additional Features:
  • The aluminum, tapered-type handlebars – a first for a Yamaha sportbike – provide a good balance of strength and light weight.
  • The fuel tank, with its deeply recessed knee grip area, contributes to a narrow seat/tank juncture.
  • Compact, hexagonal-type rearview mirrors match the “mass forward” design of the rest of the bike.
  • A newly designed lightweight, compact, full LCD instrument panel is adopted. The tachometer has a digital bar-type display with gear position indicator. The electric starter button is a new slide-type that incorporates the engine cut-off switch is an integrated button for a modern and high quality appearance.
  • The brake pedal, shift pedal, and footrests are made of forged aluminum for light weight and excellent appearance.
  • The LED taillight has separate left and right lamps that illuminate when the taillight is on and across the entire lens when the brake light is on.
2015 Yamaha FZ-09 Specifications
Engine
Engine Type: 599cc liquid-cooled inline 4-cylinder; DOHC, 16 titanium valves
Bore x stroke: 67.0 x 42.5mm
Compression Ratio 13.1: 1
Fuel Delivery Fuel Injection with YCC-T and YCC-I
Ignition TCI: Transistor Controlled Ignition
Transmission: 6-speed w / multiplate slipper clutch
Final Drive: O-ring chain

Chassis
Suspension / Front: 41mm inverted fork; 4-way adjustable, 4.5-in travel
Suspension / Rear: Single shock; 4-way adjustable, 4.7-in travel
Brakes / Front: Dual 310mm floating disc; radial-mount 4-piston calipers
Brakes / Rear: 220mm disc; single-piston caliper
Tires / Front: 120/70-ZR17 58W
Tires / Rear: 180/55-ZR17 73W

Dimensions
L x W x H: 80.3 x 27.8 x 43.1 in
Seat Height: 33.5 in
Wheelbase: 54.1 in
Rake (Caster Angle): 24 °
Trail: 3.8 in
Oil Capacity (with oil filter change): 2.75 qt
Fuel Capacity: 4.5 gal
Fuel Economy **: 40 mpg
*** Wet Weight: 417 lb

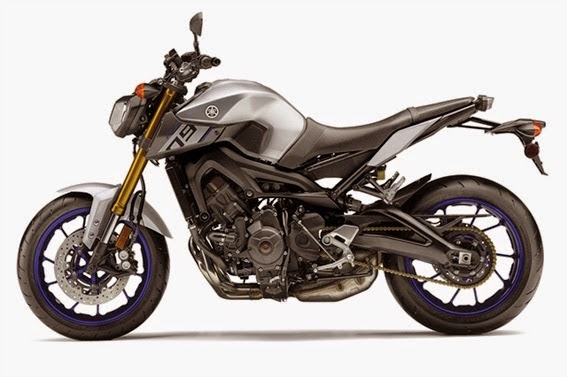

Gallery New Yamaha FZ-09
New Yamaha FZ-09 Matte Gray
New Yamaha FZ-09 Matte Gray
New Yamaha FZ-09 Matte Gray
New Yamaha FZ-09 Matte Gray
New Yamaha FZ-09 Cadmium Yellow
New Yamaha FZ-09 Cadmium Yellow
New Yamaha FZ-09 Cadmium Yellow
New Yamaha FZ-09 Cadmium Yellow
New Yamaha FZ-09 Matte Silver
New Yamaha FZ-09 Matte Silver
New Yamaha FZ-09 Matte Silver
New Yamaha FZ-09 Matte Silver

Thus reviews regarding, 2015 Yamaha FZ-09 Features, Specs and Price  concerning about the price and specifications taken from the official website of Yamaha Motorcycle.  thank you and hopefully useful. Yamaha Mio M3 125 Blue Core Overview
